Overview

Contains a summary overview of the selected MP with the possibility to edit information.

The screen is accessible after successfully selecting a Measurement Point (MP).

Information Display​

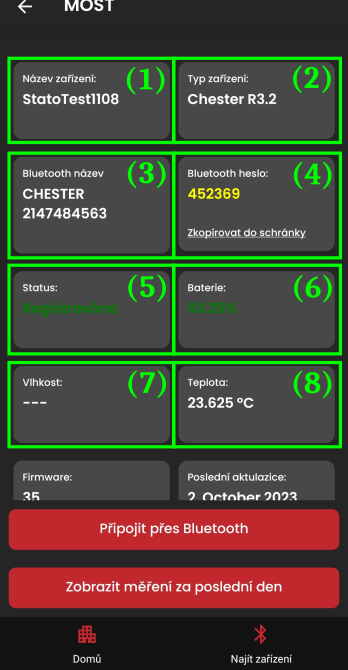

First part of MP information display

  • Device name (1)
  • Device type (2)
  • Bluetooth device name (3)
    • This can be used to identify the device on the "Find Device" screen
  • Bluetooth password (4)
  • Device status (5)
  • Battery status (6)
    • displayed as a percentage
  • Humidity (7)
    • measured humidity from the device "box"
  • Temperature (8)
    • measured temperature from the device "box"

Second part of MP information display

  • Version of currently loaded firmware (9)
  • Date of last firmware update (10)
  • Device serial number (11)
  • Measurement Point description (12)
  • Button to change Measurement Point description (13)

Third part of MP information display

  • Number of images uploaded to the Measurement Point (14)
    • photos of physical device location, installation method, documentation...
  • Button for uploading images (15)
    • selection from Gallery, or option to take photos through the app
  • Latitude/longitude (16)
    • coordinates of where the MP is located
    • clicking displays the location on a map
  • Button to change MP location (17)
    • new location is determined by the phone's position at the moment of change, or the last saved phone location

Changing MP Information​

Editing the following values:

  • MP description
  • MP photos
  • MP location

Changing Description​

  1. "Edit Description" button
  2. fill in the text field
  3. save

The change is immediately reflected in the app.

Adding Photos​

Photos - device, installation, documents...

After clicking the "Upload Images" button, a dialog box appears with options to select from gallery or take new photos.

Changing Location​

Sets MP location according to the phone's current position - "Edit MP Location" button.

Warning

Correct location can only be uploaded if the "Location Services" function is enabled on the phone (enable in settings). If not, the app uses the last saved location (may differ significantly from the location where the phone is currently located).
