Advanced Calculations

Charts that help you inspect segment inclinations over time.

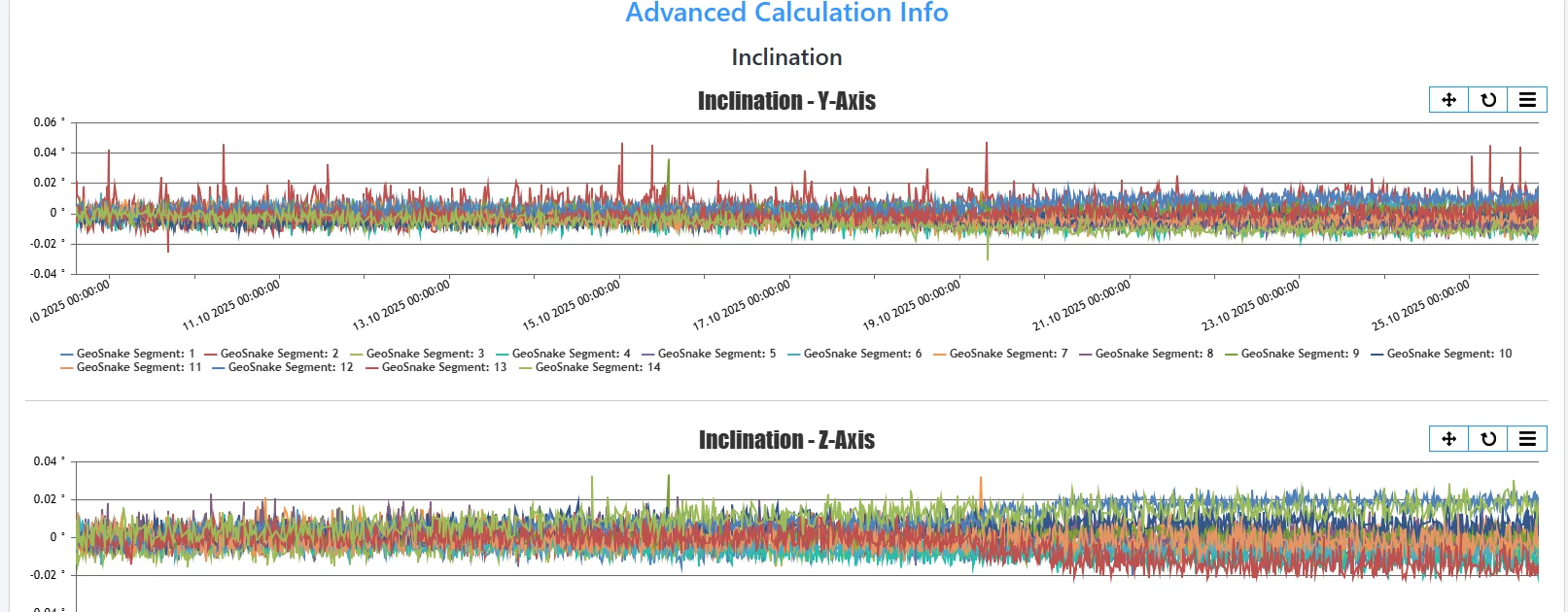

Screenshot: Advanced Calculations with Inclination and Smoothed Inclination charts

Open the charts​

  • Click Show Advanced Calculations to display the charts
  • Click Hide to close them

Charts​

  • Inclination — per segment channel, X/Y/Z angles over time
  • Smoothed Inclination — the same data with time-windowing and aggregation applied
info

Smoothing currently applies only time-windowing and value aggregation.

Reading the charts​

  • Each series corresponds to a specific segment (channel)
  • Hover to see values for a timestamp (tooltips)
  • Axis units are shown in degrees (°)
