Parameters Settings

Adjust how charts look and what they show by applying Measurement Point parameters per channel. You can test changes immediately and, if you have permissions, save them.

Before You Begin​

Select:

  • Organization — required
  • Construction — required
  • Measurement Point — required

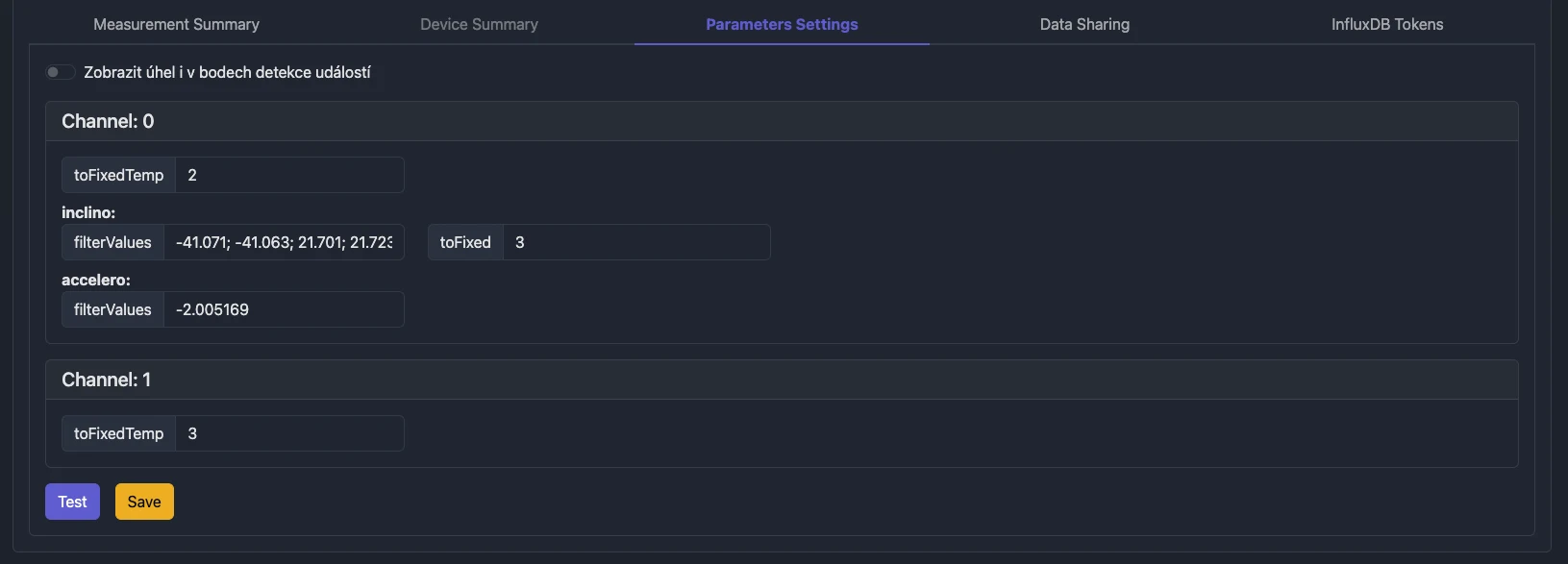

Screenshot: Parameters Settings tab with channel sections and Test/Save controls

What it’s for​

  • Rename data series, set units, and control decimal precision
  • Filter out invalid values or narrow ranges
  • Apply multipliers/dividers/offsets and temperature-related options
  • Configure type-specific behavior (e.g., inclination length, strain formulas)
User Permissions

Everyone can test parameter changes temporarily. Only Global Admins and Organization Admins can save changes to the Measurement Point parameters.

Typical workflow​

  1. Expand the channel you want to adjust and change parameters
  2. Click Test to preview changes in charts
  3. If satisfied and you have permission, click Save to apply changes permanently
warning

Testing changes modifies only the current view. Use Save to make changes permanent for the Measurement Point.
